D10 Hydra-Cell Pro High Pressure Coolant Pump Parts LIst

Request a Quote or Call us at 908.362.9981 to speak with a sales engineer

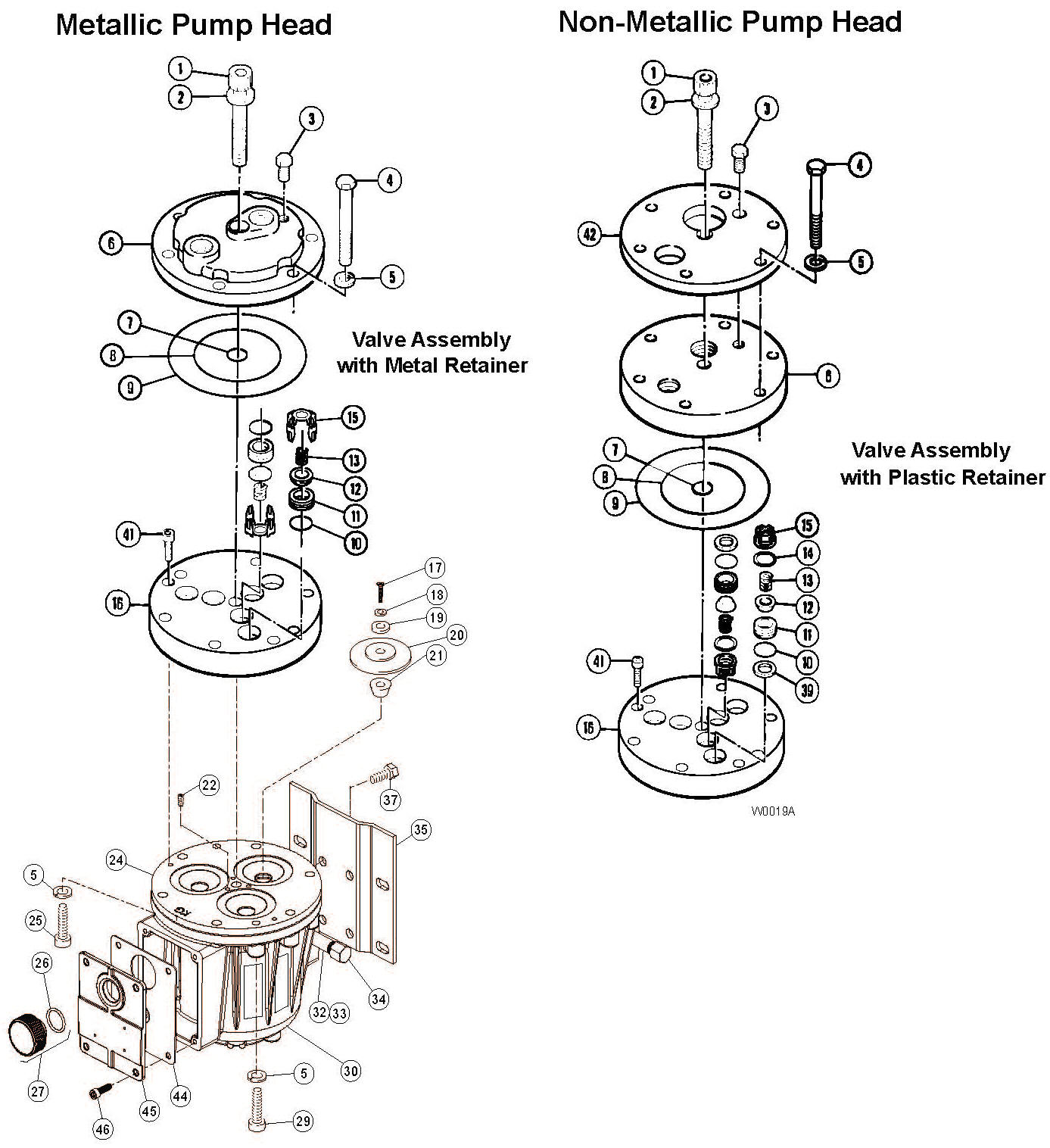

Ref. No.	Part Number	Description	Qty/ Pump
1	G10-081-2010 G10-081-2017	Screw, Cap, soc-hd, M12, 70 mm 1,3 Screw, Cap, soc-hd, M12, 102 mm 2,4	1 1
2	G10-084-1010	Washer, Flat, SST	1
3	D10-038-2017 D10-038-2210 D10-038-2211 G10-038-2017 G10-038-2211	Plug, Hastelloy® C 1,2 Plug, Brass 1 Plug, 316 SST 1,2 Plug, Hastelloy® C 3,4 Plug, 316 SST 3,4	1
4	G10-024-2011 G25-024-2010	Screw, Cap, soc-hd, M10, 80 mm 1,3 Screw, Cap, soc-hd, M10, 120 mm 2,4	6
5	G25-048-2010	Washer, Split lock	8
6	D10-004-1002 D10-004-1008 D10-004-1017 D10-004-1029 D10-004-1034 D10-004-1050 D10-004-1051 D10-004-1053 G10-004-1002 G10-004-1008 G10-004-1017 G10-004-1029 G10-004-1034 G10-004-1050 G10-004-1051 G10-004-1053	Manifold, 316 SST, NPT Manifold, Brass, NPT Manifold, Hastelloy®, NPT Manifold, 2205 SST, NPT Manifold, Cast iron, NPT Manifold, Polypropylene Manifold, Celcon® Manifold, PVDF Manifold, 316 SST, BSPT Manifold, Brass, BSPT Manifold, Hastelloy, BSPT Manifold, 2205 SST, BSPT Manifold, Cast iron, BSPT Manifold, Polypropylene, BSPT Manifold, Celcon, BSPT Manifold, PVDF, BSPT	1
7	D10-083-2110 D10-083-2111 D10-083-2112 D10-083-2113 D10-083-2118	O-ring, Center bolt, Buna-N O-ring, Center bolt, FKM O-ring, Center bolt, Neoprene O-ring, Center bolt, EPDM O-ring, Center bolt, PTFE	1
8	D11-073-2120 D11-073-2121 D11-073-2122 D11-073-2123 D10-073-2118	O-ring, Inner manifold, Buna-N O-ring, Inner manifold, FKM O-ring, Inner manifold, Neoprene O-ring, Inner manifold, EPDM O-ring, Inner manifold, PTFE	1
9	D11-074-2120 D11-074-2121 D11-074-2122 D11-074-2123 D10-074-2118 D10-109-2110 D10-109-2111 D10-109-2112 D10-109-2113 D10-109-2118	O-ring, Outer manifold, Buna-N 1,3 O-ring, Outer manifold, FKM 1,3 O-ring, Outer manifold, Neoprene 1,3 O-ring, Outer manifold, EPDM 1,3 O-ring, Outer manifold, PTFE 1,3 O-ring, Outer manifold, Buna-N 2,4 O-ring, Outer manifold, FKM 2,4 O-ring, Outer manifold, Neoprene 2,4 O-ring, Outer manifold, EPDM 2,4 O-ring, Outer manifold, PTFE 2,4	1
10	D10-035-2110 D10-035-2111 D10-035-2112 D10-035-2113 D10-035-2118	O-ring, Valve seat, Buna-N O-ring, Valve seat, FKM O-ring, Valve seat, Neoprene O-ring, Valve seat, EPDM O-ring, Valve seat, PTFE	6
11	D10-020-1010 D10-020-1011 D10-020-1016 D10-020-1017 D10-020-3300	Valve seat, 17-4 SST, HT Valve seat, 316 SST Valve seat, Tungsten carbide Valve seat, Hastelloy® C Valve seat, Ceramic	6
12	D10-021-1011 D10-021-1015 D10-021-1016 D10-021-1017 D10-021-3300	Valve, Nitronic® Valve, 17-4 SST, HT Valve, Tungsten carbide Valve, Hastelloy® C Valve, Ceramic	6
13	D10-022-3116 D10-022-3117 D10-022-3123	Valve Spring, 17-7 SST, HT Valve Spring, Elgiloy Valve Spring, Hastelloy® C	6
14	D10-092-2110 D10-092-2111 D10-092-2112 D10-092-2113 D10-092-2118	Tetra Seal, Buna-N Tetra Seal, FKM Tetra Seal, Neoprene Tetra Seal, EPDM Tetra Seal, PTFE	6
15	D10-023-1010 D10-023-1017 D10-023-2310 D10-023-2326 D10-023-2327 D10-023-2328	Retainer, Valve spring, 17-7 SST, HT Retainer, Valve spring, Hastelloy® C Retainer, Valve spring, Celcon® Retainer, Valve spring, Nylon Retainer, Valve spring, polypropylene Retainer, Valve spring, PVDF	6
16	D10-003-1011 D10-003-1012 D10-003-1019 D10-003-1027 D10-003-1029 D10-003-1032 D10-003-1033 D10-003-1036 D10-003-1037 D10-003-1038 D10-003-1050 D10-003-1051 D10-003-1053 D10-003-1060 D10-003-1061 D10-003-1063	Valve Plate, Brass Valve Plate, 316 SST Valve Plate, Cast iron Valve Plate, Hastelloy Valve Plate, 2205, SST Valve Plate, Brass, RP Valve Plate, 316 RP Valve Plate, Cast iron, RP Valve Plate, Hastelloy C, RP Valve Plate, 2205 SST, RP Valve Plate, Polypropylene Valve Plate, Celcon® Valve Plate, PVDF Valve Plate, Polypropylene, RP Valve Plate, Celcon, RP Valve Plate, PVDF, RP	1
17	D10-030-2010 D10-030-2011	Screw, Flat-hd, SST, 3/8 in. Screw, Flat-hd, Hastelloy® C, 3/8 in.	3
18	D10-047-2110 D10-047-2111 D10-047-2112 D10-047-2113 D10-047-2118	O-ring, Follower, Buna-N O-ring, Follower, FKM O-ring, Follower, Neoprene O-ring, Follower, EPDM O-ring, Follower, PTFE	3
19	D10-017-1010 D10-017-1011	Follower, 316 SST Follower, Hastelloy® C	3
20	D10-018-2312 D10-018-2313 D10-018-2315 D10-018-2320 D10-018-2325 D10-018-2348	Diaphragm, Neoprene Diaphragm, EPDM Diaphragm, FKM Diaphragm, Buna-N Diaphragm, Aflas Diaphragm, PTFE	3
21	D10-016-1010	Plunger	3

Notations:
1 D10 Metallic
2 D10 Non-metallic
3 G10 Metallic
4 G10 Non-metallic

Request a Quote or Call us at 908.362.9981 to speak with a sales engineer

Ref. No.	Part Number	Description	Qty/ Pump
22	G10-082-2010	Set Screw, 10 mm	3
24	K10-002-1020 K10-002-1220 K10-002-1242 K10-002-1243 K10-002-1244 K10-002-1245 K10-002-1246	Cylinder Housing Cylinder Housing Assembly A1 Loaded Cylinder Housing, Neoprene A4 Loaded Cylinder Housing, EPDM A4 Loaded Cylinder Housing, Buna-N A4 Loaded Cylinder Housing, FKM A4 Loaded Cylinder Housing, PTFE A4	1
25	G10-089-2011	Screw, Cap, hex-hd, 38 mm	1
27	D03-039-1030	Cap with O-ring, Oil fill	1
29	G10-087-2011	Screw, Cap, hex-hd, 45 mm	1
30	G10-001-1150 G10-001-1250	Pump Housing A2 Pump Housing Assembly A3	1
32	D10-076-2250	Plug, Soc-hd, 1/4 in.	2
33	D10-077-2250	Nipple, Brass, 1/4 in.	1
34	D10-078-2250	Cap, Brass, 1/4 in.	1
35	D10-025-1010	Base	1
37	G10-029-2010	Screw, Cap, hex-hd, 25 mm	4
39	D10-125-2320 D10-125-2327 D10-125-2328	Washer, Dampening, Celcon® 2,4 Washer, Dampening, polypropylene 2,4 Washer, Dampening, PVDF 2,4	6
41	G10-088-2010	Screw, Cap, soc-hd, 30 mm	2
42	D10-100-1010	Support Plate 2,4	1
44	G10-106-2350	Gasket, Cover	1
45	G10-105-1050	Cover / Nameplate	1
46	G03-088-2010	Screw, 20 mm	4

Notations:
2 D10 Non-metallic
4 G10 Non-metallic
A1 Cylinder Housing Assembly includes housing (24), bearing, adjusting plate (61), O-ring (60), and set screws (22).
A2 Pump housing includes housing (30), cover, gasket, and screws.
A3 Pump Housing Assembly includes housing (30), oil drain/plugs (32, 33, 34), cover, gasket, screws, and labels (66,67).
A4 Loaded Cylinder Housing includes Fluid End parts (17-22) and Hydraulic End parts (50-61).

Request a Quote or Call us at 908.362.9981 to speak with a sales engineer

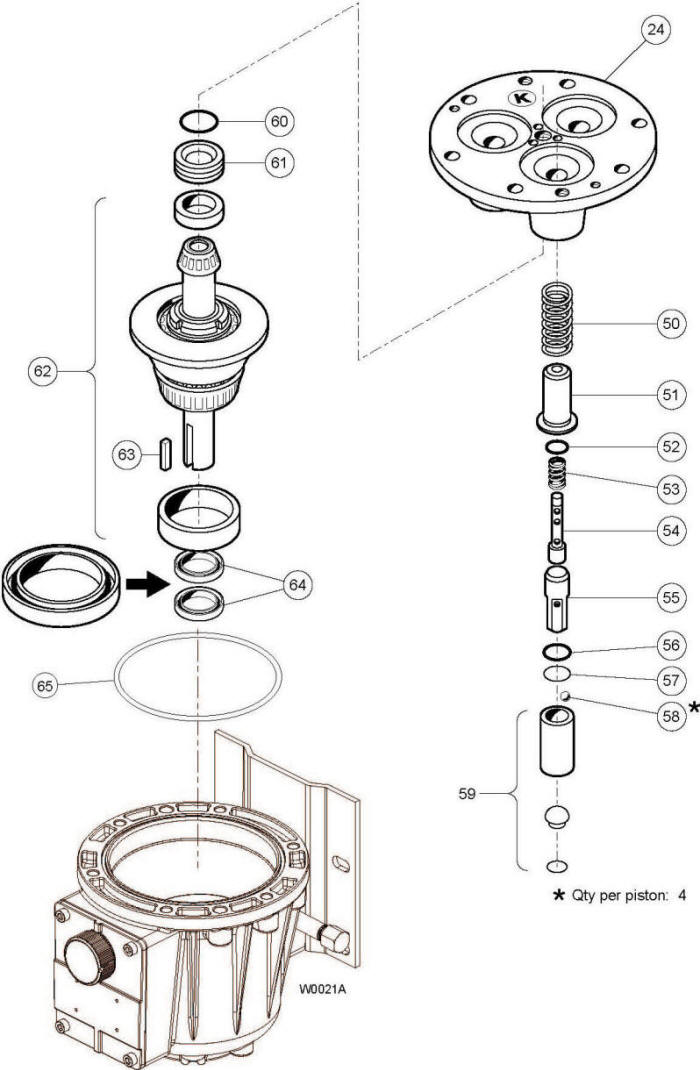

Ref. No.	Part Number	Description	Qty/ Pump
50	D10-019-3110	Spring, Piston return	3
51	K10-042-1010	Retainer, Spring	3
52	C23-009-2110	O-ring, Valve cylinder, Buna-N	3
53	K10-045-3110	Spring, Sleeve valve	3
54	K10-044-1010	Valve Plunger	3
55	K10-043-1010	Cylinder, Valve	3
56	D10-034-2110	O-ring, Buna-N	3
57	D10-041-1010	Washer, Ball retainer	3
58	D10-015-3010	Ball	12
59	K10-014-1210	Piston Assembly A5	3
60	D25-035-2110	O-ring, Bearing adjusting plate, Buna-N	1
61	D10-012-1010	Bearing Adjusting Plate	1
62	D10-007-1210 D10-007-1211 D10-007-1212 D10-007-1214	(X) Cam Assembly, 8 gpm @ 1450 rpm A6 (1) Cam Assembly, 4 gpm @ 1750 rpm A6 (S) Cam Assembly, 6 gpm @ 1750 rpm A6 (E) Cam Assembly, 8 gpm @ 1750 rpm A6	1
63	D10-085-2210	Key, Shaft	1
64	D10-031-2110	Seal, Buna-N	2
65	D10-037-2110	O-ring, Pump housing, Buna-N	1
66	D10-111-2401	Label, Caution, freezing	1
67	D10-111-2402	Label, Caution, check oil	1

Notations:
A5 Piston Assembly includes: piston, piston foot, retaining ring, and items (50-58).
A6 Cam Assembly includes: cam, shaft, wobble plate, and bearings.

Request a Quote or Call us at 908.362.9981 to speak with a sales engineer

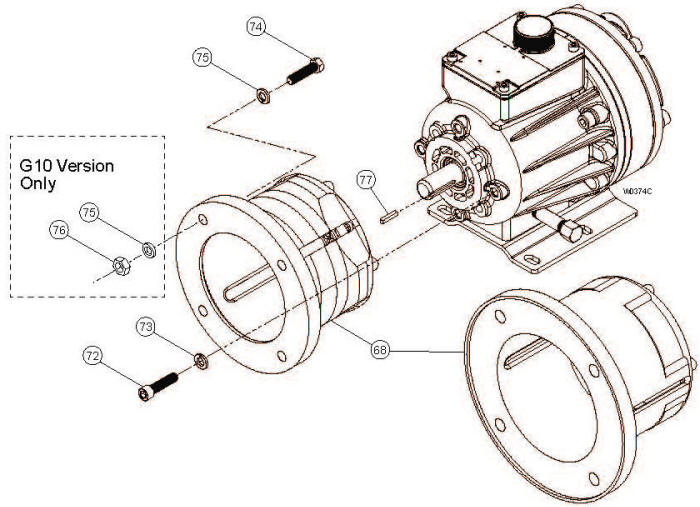

Ref. No.	Part Number	Description	Qty/Kit
68	A04-032-1050 1 A04-033-1050 1 A04-033-1051 2 A04-032-1051 2	Pump/Motor Adapter	1
72	G10-089-2010	Screw, Cap, soc-hd	4
73	G25-048-2011	Lockwasher, Split	4
74	D03-068-2010 1 M10-110-2000 1 A04-046-2010 2 A04-043-2010 2	Screw, Cap, hex-hd	4
75	D10-048-2010 1 M10-111-2000 1 A04-044-2010 2 M10-111-2000 2	Lockwasher, Split	4 4 8 8
76	A04-047-2010 2 A04-045-2010 2	Nut, hex	4
77	A04-085-2210	Key, Short	1

Notations:
1 D10
2 G10
