Pump and Motor Adapters (Bell Housings)
Pump/Motor
adapters
provide an innovative method to ensure positive shaft
alignment while also performing the function of a coupling
guard.
One end of the adapter is designed to bolt to
the pump body and the other to the motor. The adapter
slips over the shaft coupling mounted to both the pump and
motor shaft with the coupling sleeve locking the shafts
together.
In some cases, as illustrated above, both
the pump and motor are mounted to a baseplate.
Sometimes due to the difference in motor and pump size the
pump "hangs" from the motor via the adapter. Likewise
low pressure systems using small motors will sometimes
"hang" from the adapter and the pump will be mounted to the
baseplate. The adapter is designed to provide rigid support
for cantilevered pump mounting.
The robust design of the pump/motor
adapter is designed to provide rigid support and maintain
proper shaft alignment.
Pump/Motor Adapters: D/G-10 Series

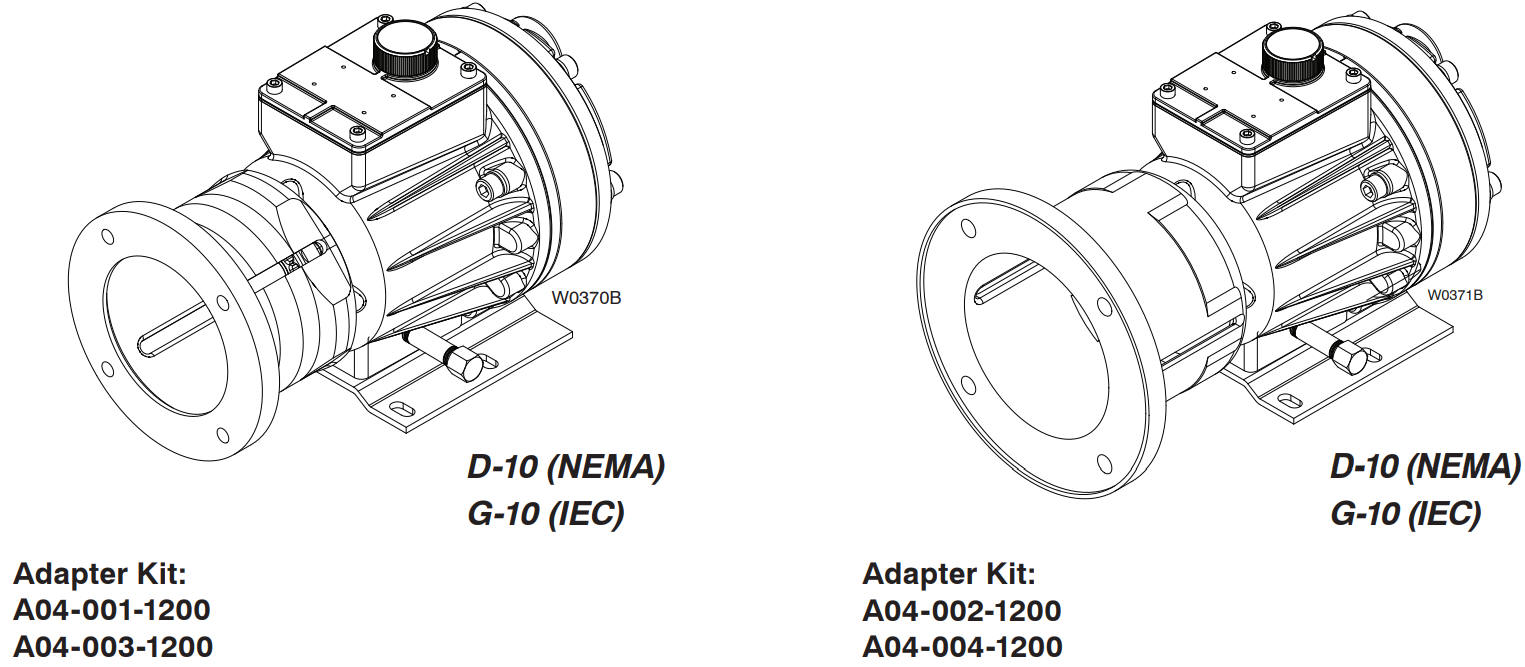

Adapter Kits for D/G-10
| Part Number | Description |
|---|---|
| A04-001-1200 | D-10 Pump/Motor Adapter Kit for NEMA 56C, 143/145TC C-Face Motors |
| A04-002-1200 | D-10 Pump/Motor Adapter Kit for NEMA 182/184TC and 213/215TC C-Face Motors |
| A04-003-1200 | G-10 Pump/Motor Adapter Kit for IEC 80-90 B5 Flange Motors |
| A04-004-1200 | G-10 Pump/Motor Adapter Kit for IEC 100-112 B5 Flange Motors |

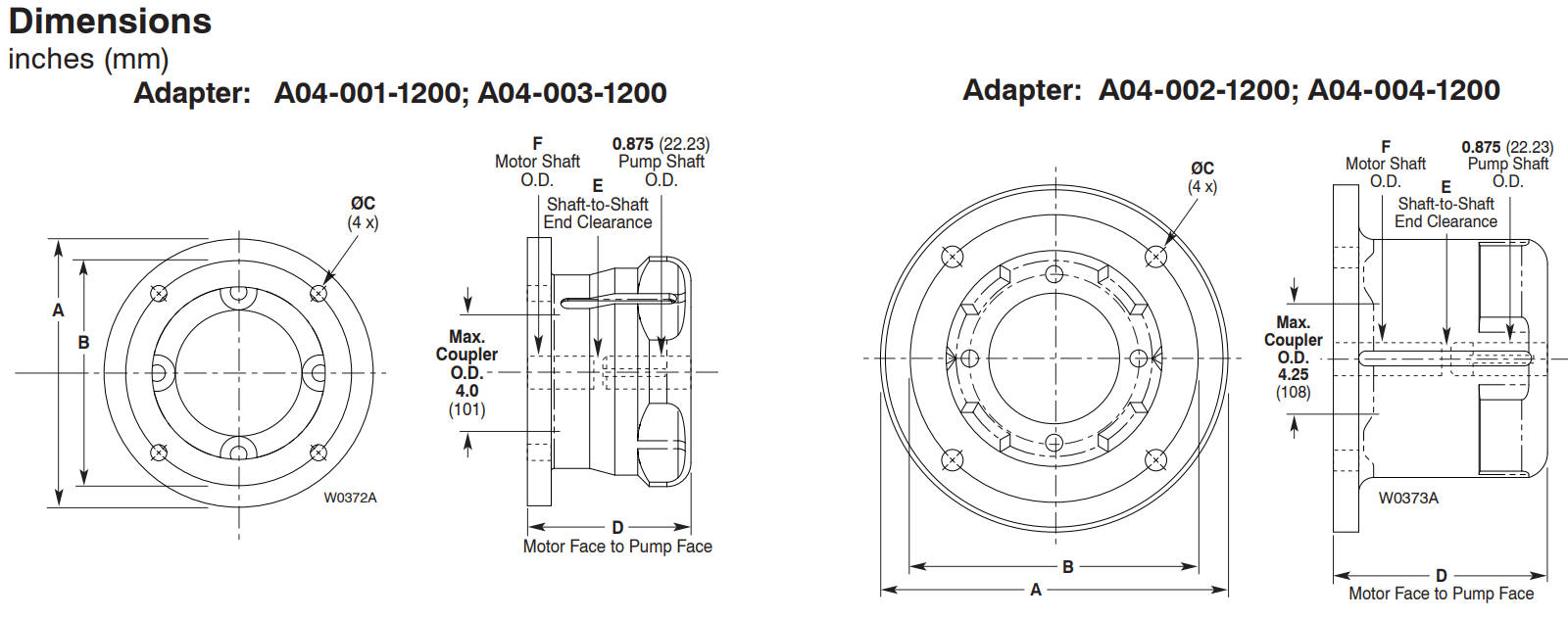

Dimensions - inches (mm)
| Kit Part Number | Motor Size | A | B | C (Ø) | D | E | F (Shaft) |
|---|---|---|---|---|---|---|---|
| A04-001-1200 | NEMA 56C | 7.00 | 5.875 | 0.42 | 4.25 | 0.76 | 0.625 |
| NEMA 143/145TC | 7.00 | 5.875 | 0.42 | 4.25 | 0.70 | 0.875 | |
| A04-002-1200 | NEMA 182/184TC | 8.75 | 7.25 | 0.54 | 5.30 | 1.12 | 1.125 |
| NEMA 213/215TC | 8.75 | 7.25 | 0.54 | 5.30 | 0.37 | 1.375 | |
| A04-003-1200 | IEC 80 B5 Flange | — | (165) | (10.7) | (108) | (31.8) | (19) |
| IEC 90 B5 Flange | — | (165) | (10.7) | (108) | (21.7) | (24) | |
| A04-004-1200 | IEC 100-112 B5 | (248) | (215) | (12.7) | (137) | (32.6) | (28) |

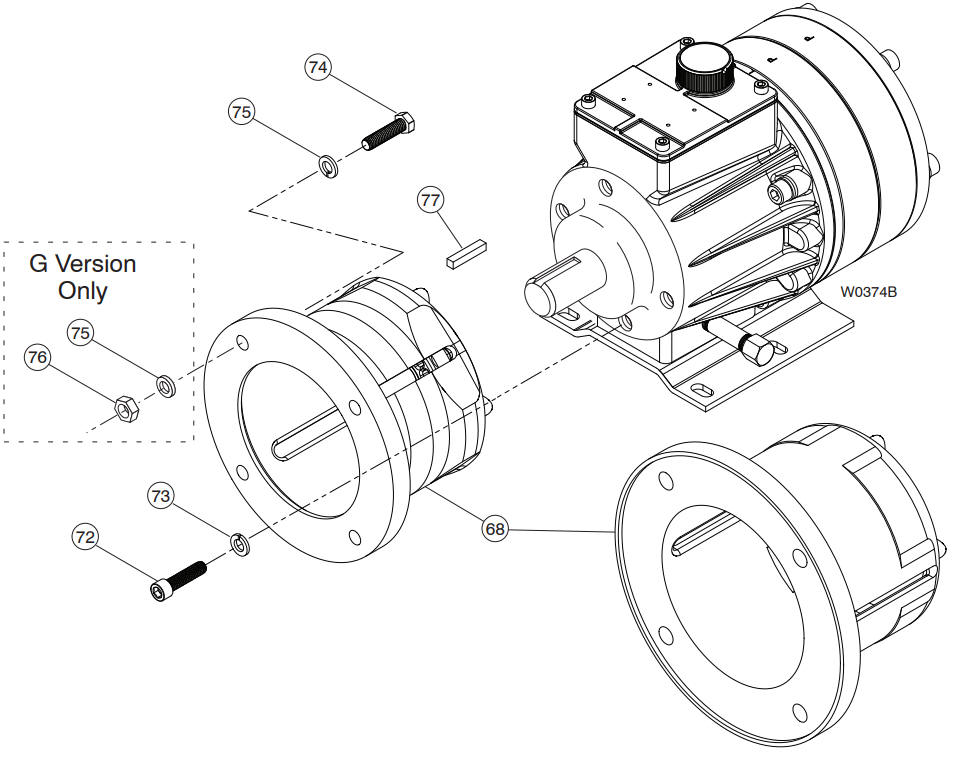

Installation Instructions
- Fasten pump/motor adapter to pump using socket-head cap screws (72) with lockwashers (73).
- Attach coupling hubs (not included in Adapter Kit), to pump and motor shafts. Slide coupling sleeve onto pump shaft coupling hub, then engage onto motor coupling hub.
- Assemble adapter to motor using hex-head cap screws (74) and lockwashers (75). IEC motors use additional lockwashers (75) and nuts (76).
- Make any adjustments to the position of the coupling hubs through the access slots in the sides of the adapter. Tighten coupling sleeve set screws.
Adapter Kit Contents
| Ref No. | Description | NEMA Kits (A04-001/002) | IEC Kits (A04-003/004) | Qty | ||
|---|---|---|---|---|---|---|
| 56C/145TC | 182/215TC | 80-90 | 100-112 | |||
| 68 | Pump/Motor Adapter | A04-031-10001 A04-032-10502 |
A04-030-10001 A04-033-10502 |
A04-031-10011 A04-032-10512 |
A04-030-10011 A04-033-10512 |
1 |
| 69* | Adapter Baseplate | A04-025-1010 | — | A04-025-1010 | — | 1 |
| 70* | Screw, Cap, Hex-hd | D10-029-2010 | — | D10-029-2010 | — | 4 |
| 71* | Lockwasher, Int. Tooth | D10-054-2010 | — | D10-054-2010 | — | 4 |
| 72 | Screw, Cap, Soc-hd | A04-041-20101 G10-089-20102 |
A04-041-20101 G10-089-20102 |
G10-089-2010 (M10) |
G10-089-2010 (M10) |
4 |
| 73 | Lockwasher, Split | D10-048-20101 G25-048-20112 |
D10-048-20101 G25-048-20112 |
G25-048-2011 (M10) |
G25-048-2011 (M10) |
4 |
| 74 | Screw, Cap, Hex-hd | D03-068-2010 (3/8 in) |
M10-110-2000 (1/2 in) |
A04-046-2010 (M10) |
A04-043-2010 (M12) |
4 |
| 75 | Lockwasher, Split | D10-048-2010 (3/8 in) |
M10-111-2000 (1/2 in) |
A04-044-2010 (M10) |
M10-111-2000 (1/2 in) |
8 |
| 76 | Hex Nut | — | — | A04-047-2010 | A04-045-2010 | 4 |
| 77 | Short Key | A04-085-2210 | A04-085-2210 | A04-085-2210 | A04-085-2210 | 1 |
2 Used on D/G10 models S/N 216283 and above.
* Item not shown in assembly diagram.
