D35 Hydra-Cell Parts List
Use Menu Below to Jump to Desired Table:
FLUID END PARTS
Request a Quote or Call us at 908.362.9981 to speak with a sales engineer

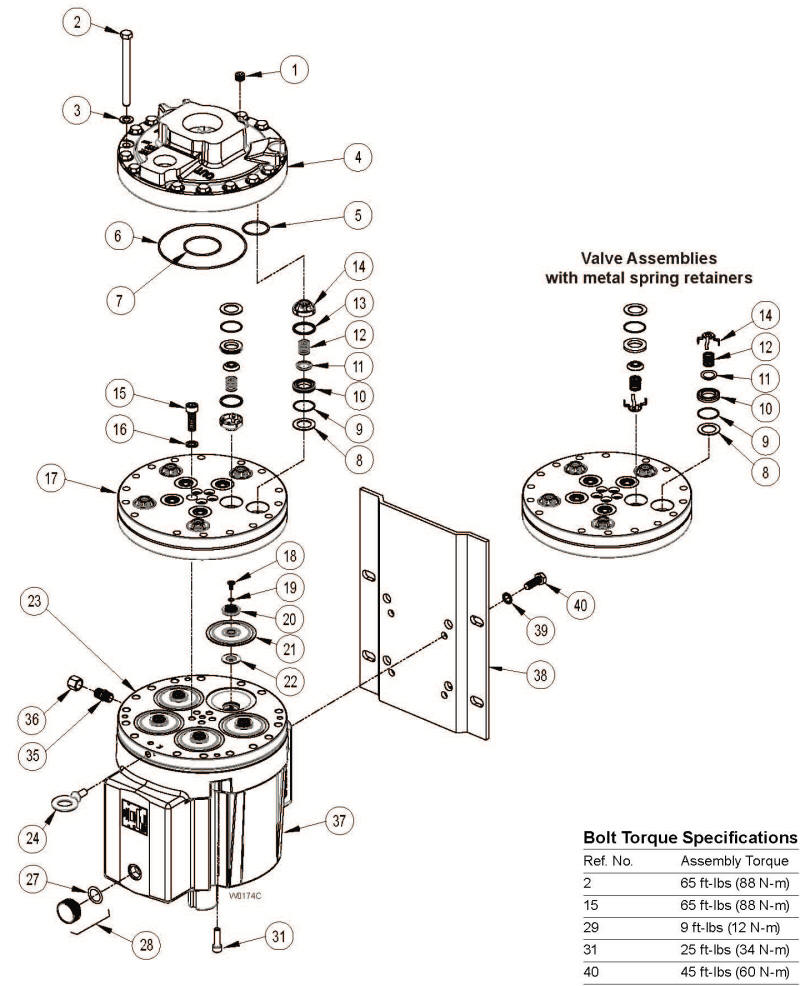

FLUID END PARTS LIST
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 1 | D25-038-2017 | Plug, Hastelloy C | 1 |
| D25-038-2210 | Plug, Brass | 1 | |
| D25-038-2211 | Plug, 316 SST | 1 | |
| 2 | G35-024-2010 | Screw, Cap, hex-hd, 140 mm | 16 |
| 3 | D40-048-2010 | Washer, Flat | 30 |
| 4 | D35-004-1002 | Manifold, 316L SST, NPT | 1 |
| D35-004-1007 | Manifold, Ductile iron, NPT | 1 | |
| D35-004-1010 | Manifold, Magn/bronze, NPT | 1 | |
| D35-004-1018 | Manifold, Nickel alloy, Hastelloy CW12MW, NPT | 1 | |
| D35-004-1028 | Manifold, Duplex alloy 2205, NPT | 1 | |
| D35-004-1030 | Manifold, Magn/bronze, SAE flange | 1 | |
| D35-004-1032 | Manifold, 316L SST, SAE flange | 1 | |
| D35-004-1037 | Manifold D.I., SAE flange | 1 | |
| D35-004-1038 | Manifold, Nickel alloy, Hastelloy CW12MW, SAE flange | 1 | |
| D35-004-1039 | Manifold, Duplex alloy 2205, SAE flange | 1 | |
| G35-004-1022 | Manifold, 316L SST, BSPT | 1 | |
| G35-004-1027 | Manifold, Ductile iron, BSPT | 1 | |
| G35-004-1020 | Manifold, Magn/bronze, BSPT | 1 | |
| G35-004-1028 | Manifold, Nickel alloy, Hastelloy CW12MW, BSPT | 1 | |
| G35-004-1029 | Manifold, Duplex alloy 2205, BSPT | 1 | |
| 5 | D25-074-2110 | O-ring, Buna | 5 |
| D25-074-2111 | O-ring, Viton | 5 | |
| D25-074-2112 | O-ring, Neoprene | 5 | |
| D25-074-2113 | O-ring, EPDM | 5 | |
| D25-074-2118 | O-ring, PTFE | 5 | |
| 6 | D35-073-2110 | O-ring, Buna | 1 |
| D35-073-2111 | O-ring, Viton | 1 | |
| D35-073-2112 | O-ring, Neoprene | 1 | |
| D35-073-2113 | O-ring, EPDM | 1 | |
| D35-073-2118 | O-ring, PTFE | 1 | |
| 7 | D35-080-2110 | O-ring, Buna | 1 |
| D35-080-2111 | O-ring, Viton | 1 | |
| D35-080-2112 | O-ring, Neoprene | 1 | |
| D35-080-2113 | O-ring, EPDM | 1 | |
| D35-080-2118 | O-ring, PTFE | 1 | |
| 8 | D25-125-1011 | Washer, Dampening, 316 SST | 10 |
| D25-125-1017 | Washer, Dampening, Hastelloy C | 10 | |
| D25-125-2310 | Washer, Dampening, Celcon (Delrin) | 10 | |
| D25-125-2316 | Washer, Dampening, Nylon | 10 | |
| D25-125-2317 | Washer, Dampening, polypropylene | 10 | |
| D25-125-2318 | Washer, Dampening, Kynar | 10 | |
| 9 | D35-035-2110 | O-ring, Buna | 10 |
| D35-035-2111 | O-ring, Viton | 10 | |
| D35-035-2112 | O-ring, Neoprene | 10 | |
| D35-035-2113 | O-ring, EPDM | 10 | |
| D35-035-2118 | O-ring, PTFE | 10 | |
| 10 | D25-020-1010 | Valve Seat, 17-4 HT SST | 10 |
| D25-020-1012 | Valve Seat, Nitronic 50 | 10 | |
| D25-020-1016 | Valve Seat, Tungsten carbide | 10 | |
| D25-020-1017 | Valve Seat, Hastelloy C | 10 | |
| D25-020-3300 | Valve Seat, Ceramic | 10 | |
| 11 | D25-021-1011 | Valve, Nitronic 50 | 10 |
| D25-021-1015 | Valve, 17-4 HT SST, machined | 10 | |
| D25-021-1016 | Valve, Tungsten carbide | 10 | |
| D25-021-1017 | Valve, Hastelloy C | 10 | |
| D25-021-3300 | Valve, Ceramic | 10 | |
| 12 | D25-022-3110 | Valve Spring, 17-7 HT SST | 10 |
| D25-022-3114 | Valve Spring, Elgiloy | 10 | |
| D25-022-3115 | Valve Spring, Hastelloy C | 10 | |
| 13 | D25-092-2110 | Tetra Seal, Buna | 10 |
| D25-092-2111 | Tetra Seal, Viton | 10 | |
| D25-092-2112 | Tetra Seal, Neoprene | 10 | |
| D25-092-2113 | Tetra Seal, EPDM | 10 | |
| D25-092-2118 | O-ring, PTFE | 10 | |
| 14 | D25-023-1010 | Retainer, Valve spring, 17-7 HT SST | 10 |
| D25-023-1017 | Retainer, Valve spring, Hastelloy C | 10 | |
| D25-023-2310 | Retainer, Valve spring, Celcon | 10 | |
| D25-023-2316 | Retainer, Valve spring, Nylon | 10 | |
| D25-023-2317 | Retainer, Valve spring, polypropylene | 10 | |
| D25-023-2318 | Retainer, Valve spring, Kynar | 10 | |
| 15 | G35-081-2010 | Screw, Cap, soc-hd, 40 mm | 5 |
| 16 | G35-084-2010 | Washer, High collar | 5 |
| 17 | D35-003-1002 | Valve Plate, 316 SST | 1 |
| D35-003-1003 | Valve Plate, Brass | 1 | |
| D35-003-1007 | Valve Plate, Ductile iron | 1 | |
| D35-003-1018 | Valve Plate, Nickel alloy, Hastelloy CW12MW | 1 | |
| D35-003-1029 | Valve Plate, Duplex alloy 2205 | 1 | |
| 18 | D25-030-2010 | Screw, Flat-hd, 316 SST | 5 |
| D25-030-2011 | Screw, Flat-hd, Hastelloy C | 5 | |
| 19 | D25-047-2110 | O-ring, Buna | 5 |
| D25-047-2111 | O-ring, Viton | 5 | |
| D25-047-2112 | O-ring, Neoprene | 5 | |
| D25-047-2113 | O-ring, EPDM | 5 | |
| D25-047-2118 | O-ring, PTFE | 5 | |
| 20 | D25-017-1010 | Follower, 316 SST | 5 |
| D25-017-1011 | Follower, Hastelloy C | 5 | |
| 21 | D25-018-2312 | Diaphragm, Neoprene | 5 |
| D25-018-2313 | Diaphragm, EPDM | 5 | |
| D25-018-2315 | Diaphragm, Viton-XT | 5 | |
| D25-018-2318 | Diaphragm, PTFE | 5 | |
| D25-018-2320 | Diaphragm, Buna-N-XS | 5 | |
| D25-018-2325 | Diaphragm, AFLAS | 5 | |
| 22 | D25-016-1010 | Plunger | 5 |
| 23 | K35-002-1010 | Cylinder Housing, Kel-Cell | 1 |
| K35-002-1210 | Cylinder Housing Assembly, Kel-Cell | 1 | |
| K35-002-1242 | Loaded Cylinder Housing Assembly, Kel-Cell, Neoprene | 1 | |
| K35-002-1243 | Loaded Cylinder Housing Assembly, Kel-Cell, EPDM | 1 | |
| K35-002-1244 | Loaded Cylinder Housing Assembly, Kel-Cell, Buna N-XS | 1 | |
| K35-002-1245 | Loaded Cylinder Housing Assembly, Kel-Cell, Viton XT | 1 | |
| K35-002-1246 | Loaded Cylinder Housing Assembly, Kel-Cell, PTFE | 1 | |
| K35-002-1247 | Loaded Cylinder Housing Assembly, Kel-Cell, AFLAS | 1 | |
| 24 | D40-102-2010 | Eyebolt | 1 |
| 25 | D35-106-2310 | Gasket, Cover | 1 |
| 26 | D35-105-1010 | Cover, Housing | 1 |
| 27 | D10-080-2110 | O-ring, Buna, 118 | 1 |
| 28 | D03-039-1030 | Cap with O-ring, Oil fill | 1 |
| 29 | G35-088-2010 | Screw, Cap, soc-hd, 20 mm | 6 |
| 30 | G35-028-2010 | Nut, Hex | 14 |
| 31 | G35-029-2010 | Screw, Cap, soc-hd, 35 mm | 5 |
| 32 | G35-140-1000 | Bolting Bar, Double | 1 |
| 34 | D25-076-2210 | Elbow, 90°, brass | 1 |
| 35 | D25-077-2210 | Pipe, Brass | 1 |
| 36 | D25-078-2210 | Pipe Cap, Brass | 1 |
| 37 | G35-001-1210 | Pump Housing Assembly, Aluminum | 1 |
| G35-001-1215 | Pump Housing Assembly, Ductile iron | 1 | |
| 38 | D40-025-1010 | Baseplate | 1 |
| 39 | G35-054-2010 | Washer, Internal tooth | 4 |
| 40 | G35-087-2010 | Screw, Cap, hex-hd, 35 mm | 4 |
HYDRAULIC END PARTS
Request a Quote or Call us at 908.362.9981 to speak with a sales engineer

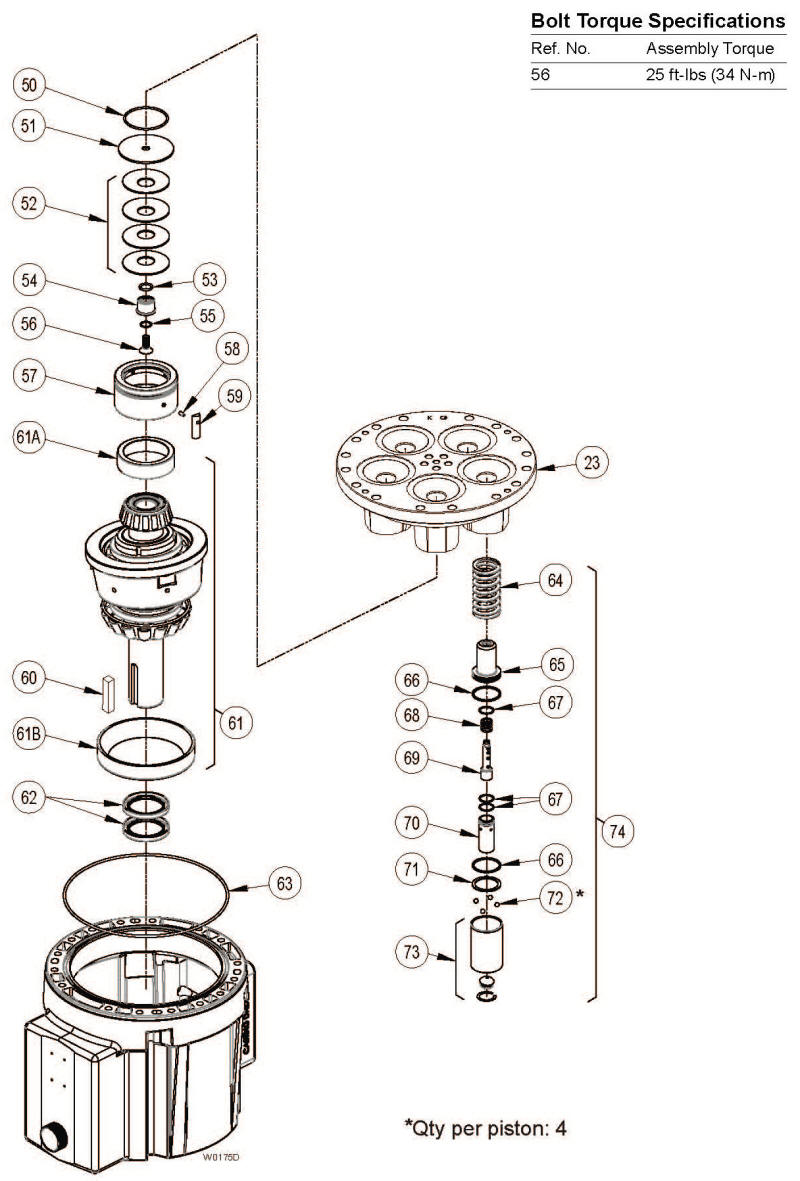

HYDRAULIC END PARTS LIST
| 53 | D10-083-2110 | O-ring, Buna | 1 |
| 54 | D35-112-1011 | Guide, Disc spring | 1 |
| 55 | D40-047-2110 | O-ring, Buna | 1 |
| 56 | G35-115-2011 | Screw, Flat-hd, 25 mm | 1 |
| 57 | D35-012-1010 | Plate, Bearing adjustment | 1 |
| 58 | D35-110-2010 | Pin, Dowel | 1 |
| 59 | D35-113-1010 | Key | 1 |
| 60 | D40-085-1010 | Key, Shaft | 1 |
| 61 | D35-007-1210 | (X) Cam Assembly, 37 GPM @ 1050 RPM | 1 |
| D35-007-1212 | (E) Cam Assembly, 35 GPM @ 1160 RPM | 1 | |
| 62 | D40-031-2110 | Seal, Shaft | 2 |
| 63 | D35-037-2110 | O-ring, Buna | 1 |
| 64 | D25-019-3111 | Spring, Piston return | 5 |
| 65 | D25-042-1010 | Retainer, Spring | 5 |
| 66 | D25-034-2110 | O-ring, Buna | 10 |
| 67 | D25-046-2110 | O-ring, Buna | 15 |
| 68 | D25-045-3110 | Spring, Sleeve valve | 5 |
| H25-045-3111 | Spring, Sleeve valve for PTFE diaphragm | 5 | |
| K25-045-3110 | Spring, Sleeve valve, Kel-Cell | 5 | |
| 69 | D25-044-1010 | Plunger, Valve | 5 |
| 69 | K25-044-1010 | Plunger, Valve, Kel-Cell | 5 |
| 70 | D25-043-1010 | Cylinder, Valve | 5 |
| K25-043-1010 | Cylinder, Valve, Kel-Cell | 5 | |
| 71 | D25-041-1010 | Washer, Retaining | 5 |
| 72 | D25-015-3010 | Ball, Steel | 20 |
| 73 | D25-014-1209 | Piston, with foot and retainer | 5 |
| 74 | D25-014-1210 | Piston Assembly | 5 |
| K25-014-1210 | Piston Assembly, Kel-Cell | 5 |
